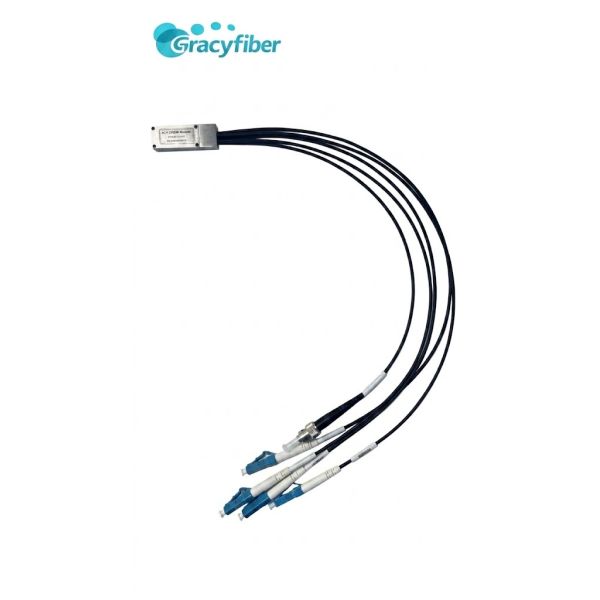

4CH O-Band CWDM Multiplexer Module (1271~1331nm)

4CH O-Band CWDM Multiplexer Module (1271~1331nm)

1. Features

• Ultra-wide operating temperature range from -55°C to 85°C for deployment in extreme environments.




• Delivers low insertion loss (≤1.5 dB) and low polarization dependent loss (≤0.3 dB) for consistent signal integrity.




• Engineered for high channel isolation, achieving ≥30 dB for adjacent channels and ≥40 dB for non-adjacent channels.




• Features ruggedized 2.0mm armored fiber tubing to provide maximum mechanical protection.




• Highly compact module footprint measuring just 37.5 × 12.8 × 6.5 mm.




2. Applications

• Coarse Wavelength Division Multiplexing (CWDM) network architectures.

• Industrial and harsh environment optical communication systems.

• Specialized multi-signal routing, including visible (1271nm), infrared (1291nm), and imaging (1311nm) transmission applications.




3. Specifications

•


  Operating Wavelengths: 1271 nm, 1291 nm, 1311 nm, and 1331 nm.




•


  Channel Bandwidth: Center wavelength (λc) ±6.5 nm.




• Optical Performance: Insertion Loss ≤ 1.5 dB; Ripple ≤ 0.5 dB; PDL ≤ 0.3 dB.




•


  Fiber Configuration: G.657 A1 fiber housed in 2.0mm armored tubing.




• Connector Type: ST/UPC on the COM port; LC/UPC on all channel ports.




•


  Temperature Rating: Operating and storage temperatures strictly tested from -55°C to 85°C.
