FWDM Filter 850R/1310P

Name: FWDM Filter 850R1310P
Brand: Gracyfiber
Price: 1 USD

Buy cheap FWDM Filter 850R/1310P product

Wavelength range : 850nm/1310nm

Insertion loss : 0.7dB max at 1310nm, 0.6dB max at 850nm

Isolation : 30dB min at 850nm

PDL : 0.1dB max

Dimensions : 85 × 18 × 6.5mm

Case material : Plastic

Place of Origin : Guangdong , China

Brand Name : Gracyfiber

Certification : ISO9001 , ROHS

Delivery Time : 5-8 work days

Payment Terms : L/C, T/T

Supply Ability : 100,000 pieces per month

MOQ : 1pieces

Contact Now

FWDM Filter 850R/1310P

1. Product Introduction

The FWDM Filter 850R/1310P is a compact fiber wavelength division multiplexing filter designed for efficient separation and routing of 850nm and 1310nm optical signals in multimode fiber systems.

2. Features

850nm reflection / 1310nm transmission FWDM filter
Low insertion loss: 0.7dB max at 1310nm, 0.6dB max at 850nm
High isolation: 30dB min at 850nm transmission path
Low PDL: 0.1dB max
Compact plastic case: 85 × 18 × 6.5mm
RoHS compliant design

3. Applications

Optical transceivers and fiber optic modules
Multimode fiber communication systems
850nm / 1310nm wavelength separation
Optical monitoring and test systems
Data center and enterprise optical links
Customized fiber optic assemblies

Product Tags:

FWDM filter 850nm/1310nm

FWDM optical filter

FWDM filter with warranty

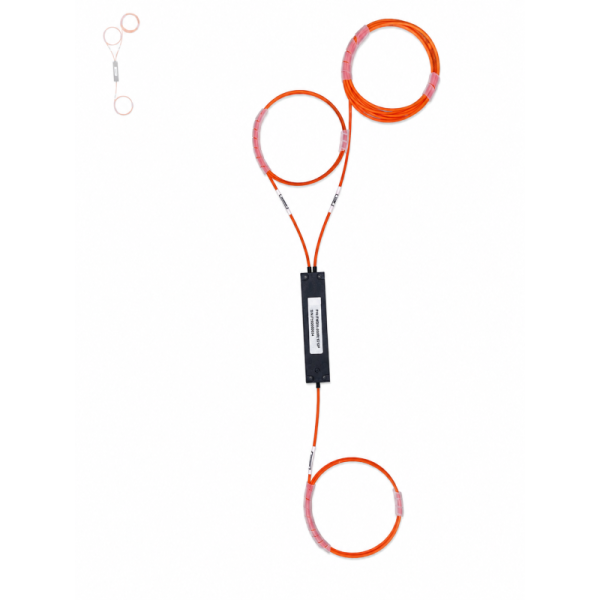

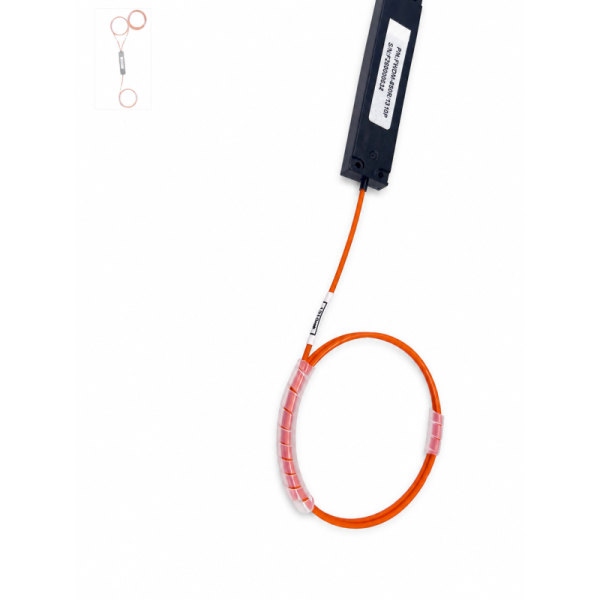

FWDM Filter 850R/1310P Images
