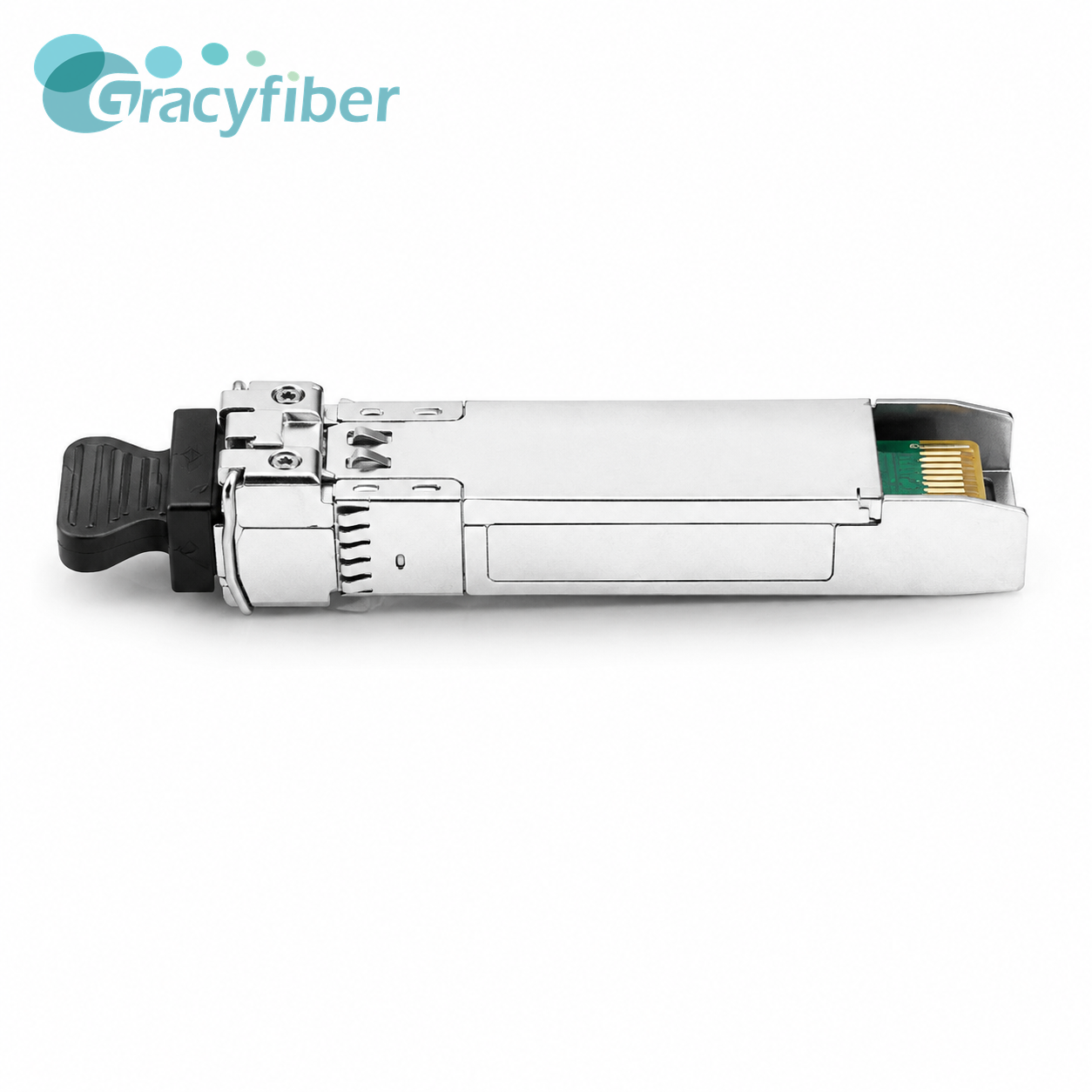

10G CWDM SFP+ Transceiver 10Gbps Coarse Wavelength Splitting Module 10km Duplex LC for 10G Ethernet, Fibre Channel and 3G/4G/5G Networks

  • 1
  • 2

Wavelength range : 1271 to 1611 nm

Transmission distance : 10 km

Power consumption : < 1.5 W

Data rate : 9.9 to 11.3 Gb/s

Contact Now

10G CWDM SFP+ Transceiver 10Gbps Coarse Wavelength Splitting Module 10km Duplex LC for 10G Ethernet, Fibre Channel and 3G/4G/5G Networks
1. Product Description

This 10G CWDM SFP+ Transceiver is a hot-swappable optical transceiver module designed for 10Gbps multi-rate optical links. It utilizes a CWDM DFB laser and a high-sensitivity PIN receiver, supporting multiple CWDM wavelengths from 1271 to 1611nm, with a transmission distance of up to 10km over G.652 single-mode fiber. The product features a Duplex LC interface, supporting rates from 9.9 to 11.3Gb/s, and is compatible with 10GBASE-LR/LW Ethernet, 4x/8x/10x Fibre Channel, and SONET OC-192/SDH STM-64 applications.


2. Key Features
Parameter Symbol Min. Typical Max. Unit Note
Supply Voltage Vcc 3.135 3.30 3.465 V
Supply Current Icc

350 mA
Inrush Current Isurge

Icc+30 mA
Maximum Power Pmax

1.5 W
Transmitter Section:





Input differential impedance Rin
100
Ω 1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) V -0.3
4 V
Single ended data input swing VinPP 180
700 mV 2
Transmit Disable Voltage VD 2
Vcc V 3
Transmit Enable Voltage VEN Vee
Vee+0.8 V
Transmit Disable Assert Time Tdessert

10 us
Receiver Section:





Rx Output Diff Voltage Vo 300
850 mV 3
Data output rise time tr 30

ps 4
Data output fall time tf 30

ps 4
LOS Fault Vlosfault 2
Vcchost V 5
LOS Normal Vlos norm Vee
Vee+0.8 V 5
  • Supports multi-rate transmission from 9.9 to 11.3 Gb/s
  • CWDM wavelength coverage from 1271 to 1611 nm
  • Employs CWDM DFB laser and PIN receiver
  • G.652 single-mode fiber transmission distance up to 10 km
  • Duplex LC optical interface
  • Receiver sensitivity up to -15 dBm
  • Single-channel 3.3V power supply, typical power consumption < 1.5 W
  • Supports DDM digital diagnostic monitoring
  • Supports hot-swappable SFP+ package
  • Compliant with RoHS and relevant SFP+ industry standards

10G CWDM SFP+ Transceiver 10Gbps Coarse Wavelength Splitting Module 10km Duplex LC for 10G Ethernet, Fibre Channel and 3G/4G/5G Networks

3. Applications
  • 10GBASE-LR/LW Ethernet
  • 10G Fibre Channel
  • CWDM Optical Networks
  • 3G/4G/5G Mobile Fronthaul
  • SONET OC-192 / SDH STM-64
  • Metro and Access Networks
  • BBU, RRU, and AAU fiber optic connections
